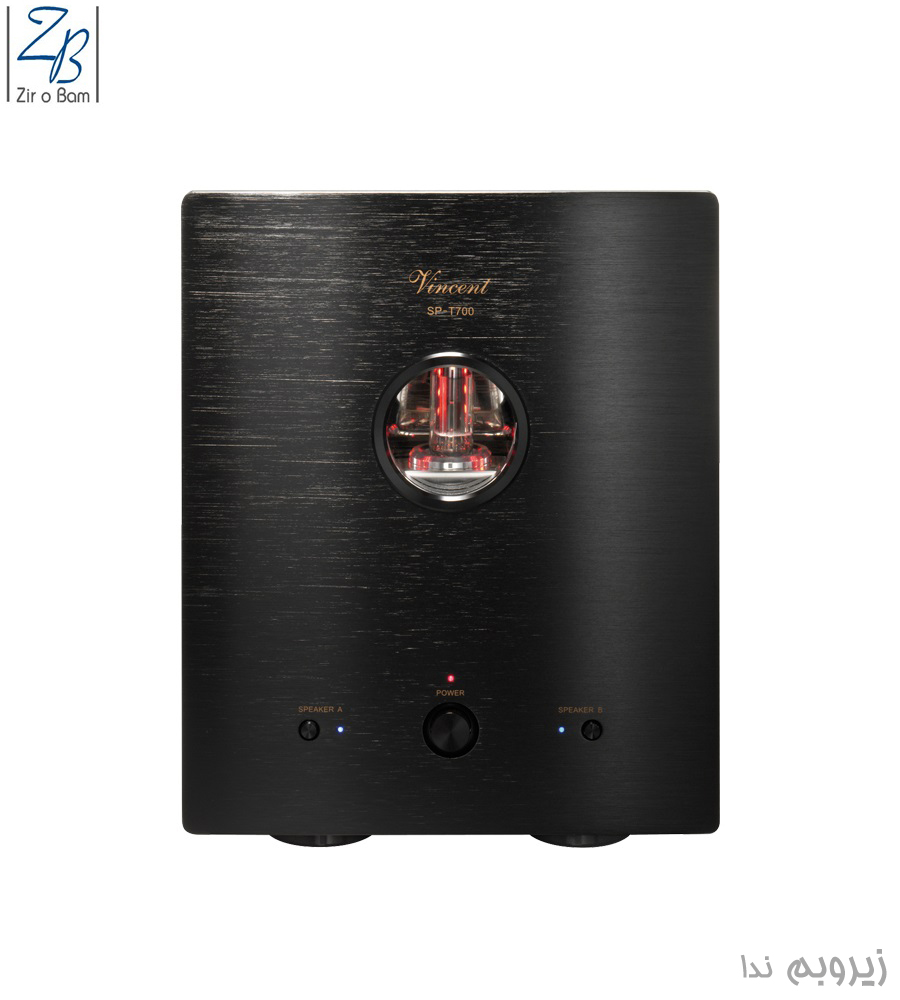

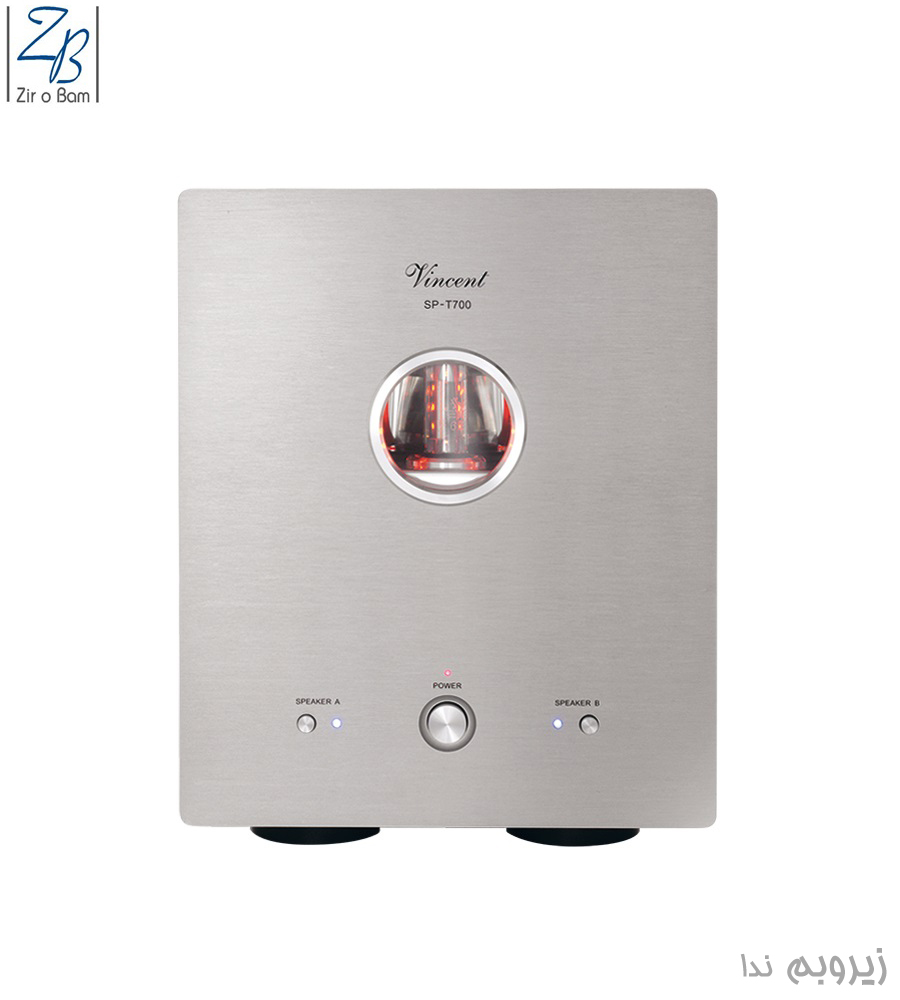

پاور آمپلیفایر Vincent مدل SP-T700

دسته بندی ها: برندها:

متن فارسی به زودی بارگذاری خواهد شد.

Share

توضیحات

متن فارسی به زودی بارگذاری خواهد شد.

Class-A Hybrid Mono Poweramplifier

A completely new combination amplifier was developed for the SP-T700, exploiting the respective advantages of tubes and transistors in an innovative manner, combining them to create a harmonious whole. The SP-T700 is characterised by excellent reproduction features that remain constant over the entire frequency and load range and it has a superior power reserve

The tubes are 100% selected frame grid tubes from the military sector. They are designed for a lifetime of 10,000 hours

The best of two worlds: Subtle reproduction of voices and acoustic instruments, plus the strength and punch of a huge rock stage – the SP-T700 is an exceptional power amplifier that meets such contradictory requirements with elegant ease. This is only possible due to the latest tube technology, combined with a transistor end stage. The outcome: Inspiring sound, plus strength and comprehensive speaker control

جزئیات

پاسخ فرکانسی (هرتز)

20 هرتز – 20 کیلوهرتز

توان خروجی(وات/rms)

10 وات ClassA در 8 اهم
150 وات در 8 اهم
300 وات در 4 اهم

حساسیت (میلی ولت)

1 ولت برای 25 وات RMS در 4 اهم

نسبت اصل صدا (signal) به صداهای زائد(noise)

> 90 dB

مقاومت ورودی

22 کیلو اهم

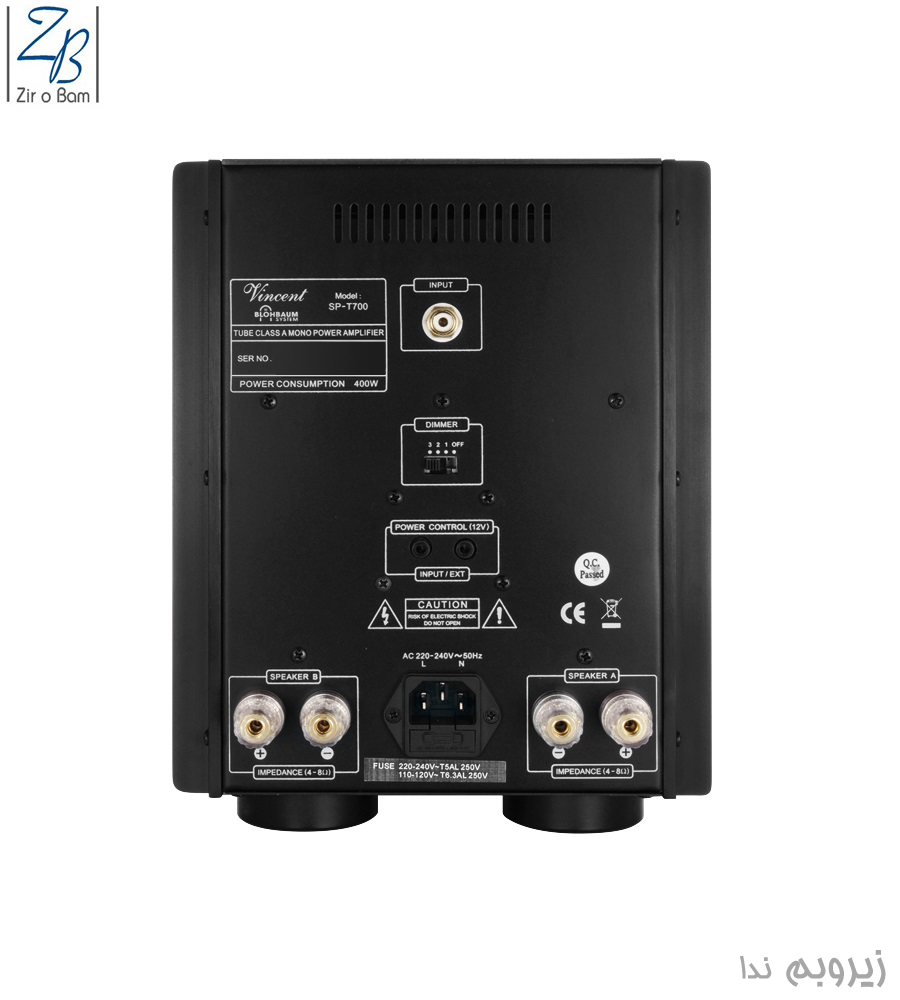

ورودی ها

1 عدد 3.5 mm Jack socket Power Control
1 عدد mono RCA

خروجی ها

1 عدد 3.5 mm Jack socket Power Control
2 عدد 2 Speaker terminals

لامپ صوتی

1 عدد 6S3P-EV
1 عدد 6SCH9P
1 عدد 6Z4

رنگ


وزن

16 کیلوگرم

ابعاد

210 در 263 در 400 میلی متر
